Dragonfly Mini 180 Awning
$1,495.00
- Description
- Shipping & Returns
- Why Buy From Us
Description

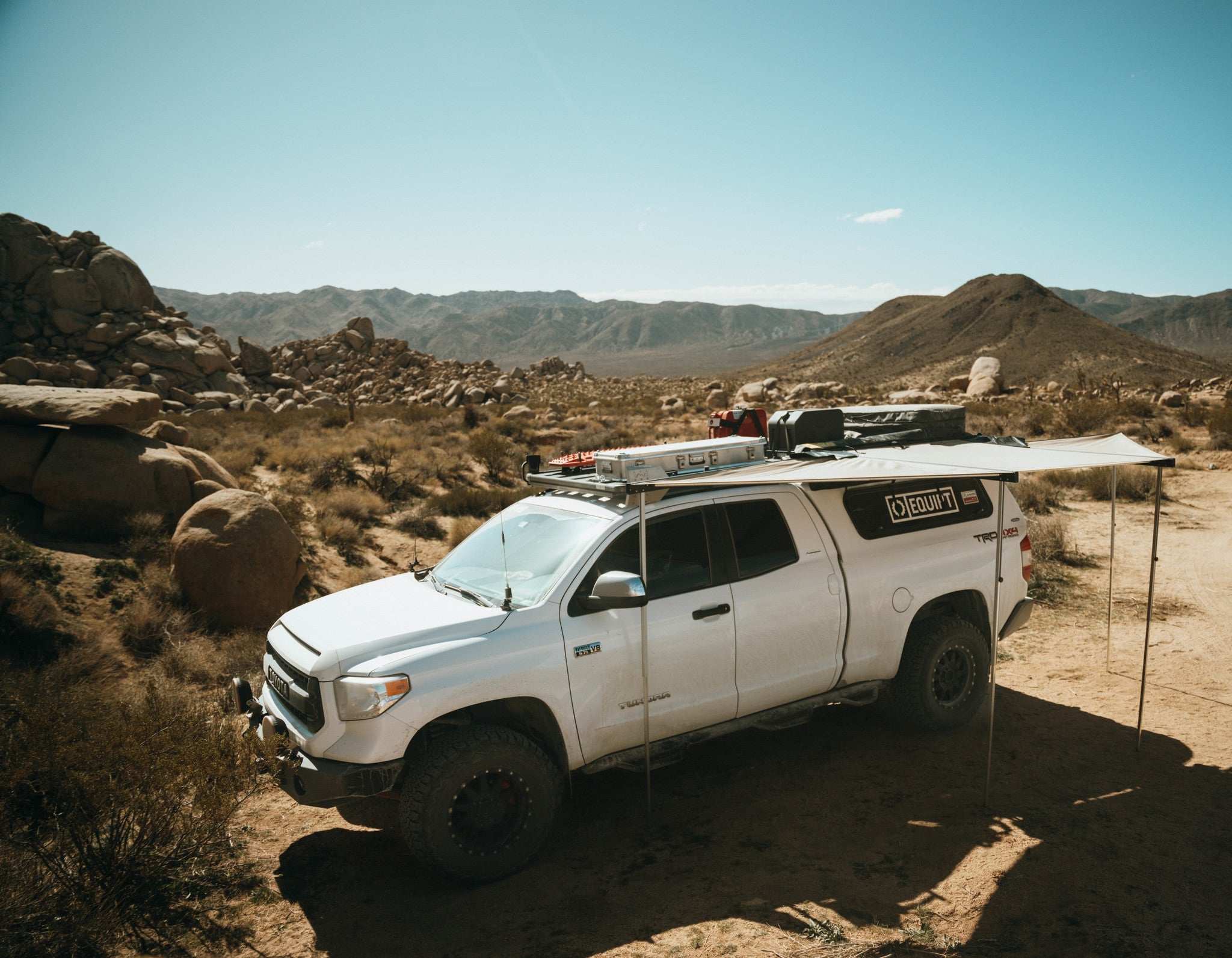

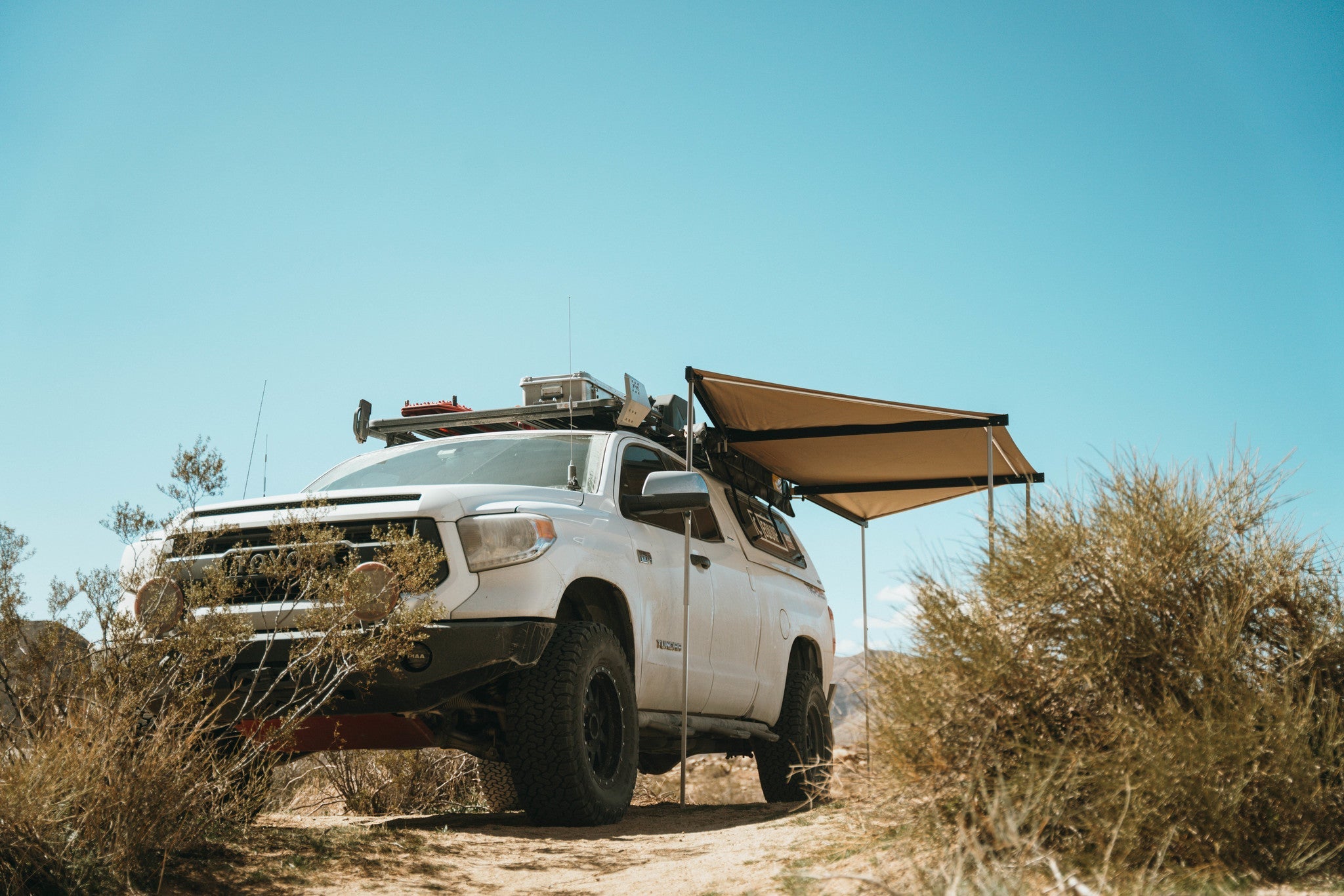

The Eezi-Awn Dragonfly Mini 180 Awning is a compact freestanding 180° bag awning that delivers 62.35 ft² of wrap-around side and rear coverage — the same panel geometry as the full Dragonfly 180, scaled down for smaller vehicles, tighter rack clearances, or weight-conscious builds. The self-contained aluminum framework deploys in under a minute with a simple twist-lock mechanism. Built from 260 gram waterproof UV ripstop canvas with a 700 gram UV-resistant PVC cover, and made at Eezi-Awn's Johannesburg facility. Available in Grey or Beige for left or right side mounting.
SPECIFICATIONS
- Coverage: 62.35 ft² (5.8 m²)
- Weight: 45 lbs (21 kg)

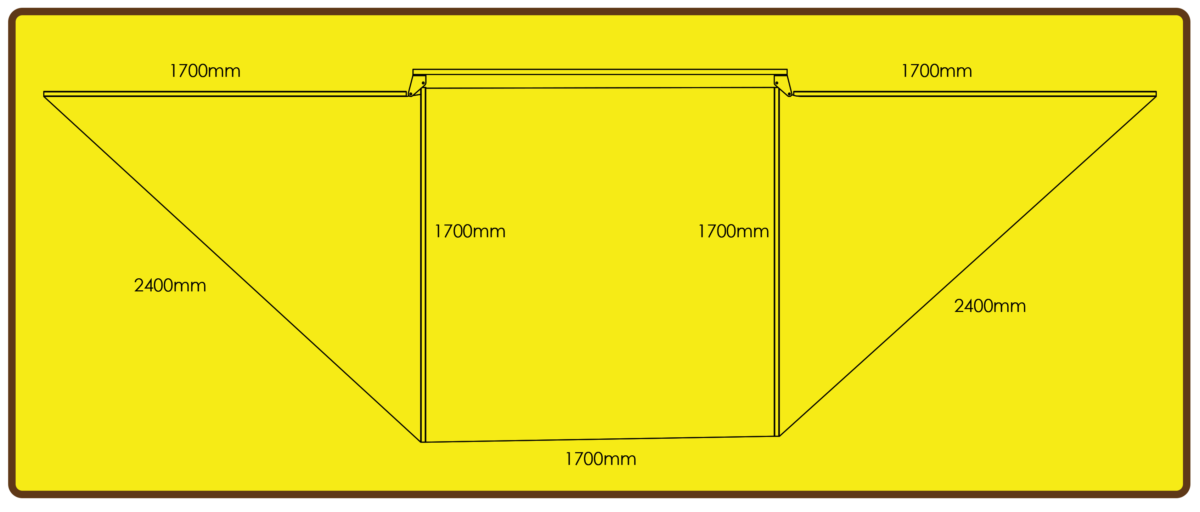

- Open Dimensions: (2) Triangular Panels — 95" × 67" × 67" (2400mm × 1700mm × 1700mm); (1) Rectangle Panel — 67" × 67" (1700mm × 1700mm)
- Closed Dimensions: 78" L × 7" W × 8" H (1980mm × 150mm × 200mm)
- Mounting Extrusion: 71" L × 5" H (1800mm × 125mm)
- Leg Height (Fully Extended): 92" (2330mm)
- Awning Material: 260 gram Waterproof UV Ripstop Canvas
- Cover Material: Black, 700 gram UV-Resistant Heavy Duty PVC
- Color Options: Grey or Beige
- Origin: Johannesburg, South Africa
Note: Freestanding in no wind conditions. Staking down at the base of legs in an X pattern is strongly recommended at all times.
KEY FEATURES
- 180° Wrap-Around in a Shorter Package: At 78" closed, the Mini fits vehicles and racks where the full Dragonfly 180's 97" closed length would overhang or not mount cleanly — delivering the same 180° geometry in a more accessible form factor.

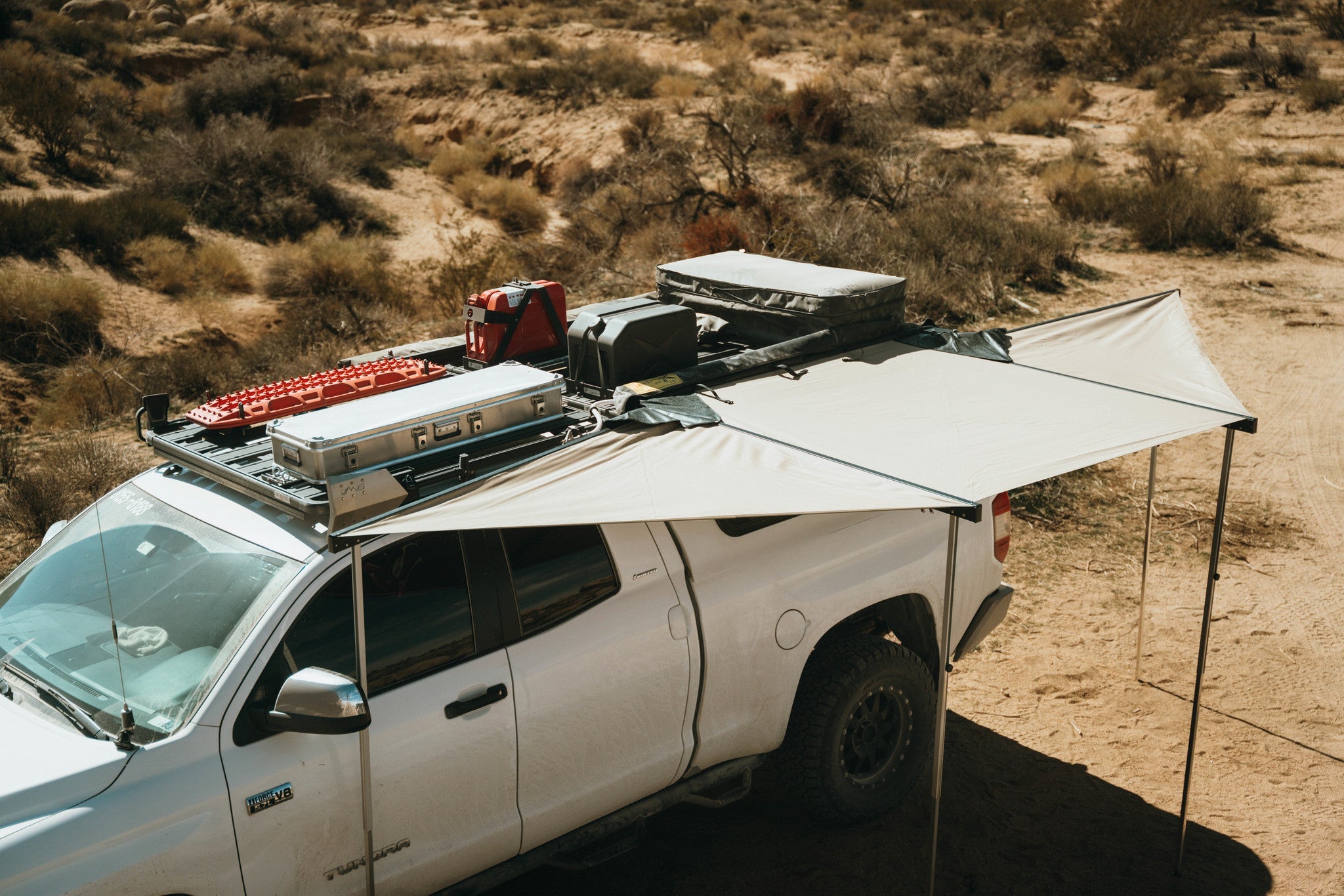

- 62 ft² of Freestanding Coverage: Two triangular panels and one rectangle panel create defined side and rear coverage — significantly more than a standard 2M side awning from a single mount point.
- Freestanding with Adjustable Legs: Integrated legs extend to 92" (2330mm) and are stake-compatible for stability in wind.
- 260 Gram Waterproof UV Ripstop Canvas: Same canopy spec as the full Dragonfly 180, Bat 270, and Manta 270 — waterproof, UV-resistant, and built for extended expedition use.
- 700 Gram PVC Cover: Heavyweight tonneau-grade bag protects the rolled canopy during travel — same cover spec as the full Dragonfly line.
IDEAL FOR
- Mid-size vehicles — 4Runners, Tacomas, Broncos, and similar platforms — where the full Dragonfly 180's 97" closed length is too long for the available mounting surface.
- Overlanders who want 180° wrap-around coverage without the weight of the full Dragonfly 180 (45 lbs vs 55 lbs).
- Two-person trips where 62 ft² of covered space covers a camp cooking area and seating without the full Dragonfly's larger footprint.
- Builds where a 270° awning's rear wrap interferes with rooftop tent access or rear door clearance.
IN THE BOX
- Dragonfly Mini 180 Awning (canopy, PVC cover, rafter arms, and adjustable legs)
Additional mounting hardware may be required depending on your roof rack. See the Eezi-Awn Bat/Manta/Swift/Lite/Dragonfly Awning Mount for compatible options.
COMPATIBILITY
The Dragonfly Mini 180 mounts to a vertical surface. Bat/Manta/Swift/Lite/Dragonfly Awning Mount (sold separately). Orientation (Left or Right) must be selected at purchase.
